Zimmatic - 9500MP
Zimmatic - 9500MP
- Range
- 9500 Series
- Division
- Pivot - Centre
- Manufacturer
- Zimmatic
- Alternative Pipeline Option Aluminium, Poly, SS

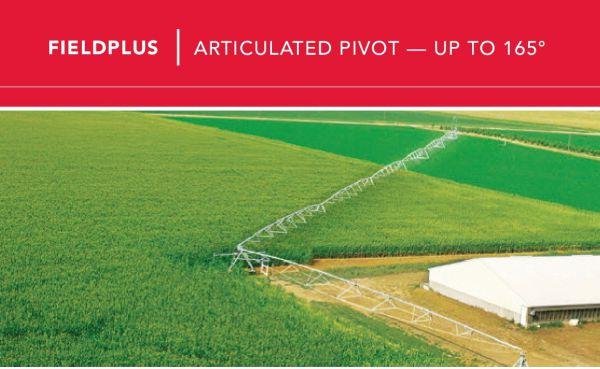

- Articulated
- Optional
- Cable Theft Protection
- 1
- Center Drive Type
- Electric

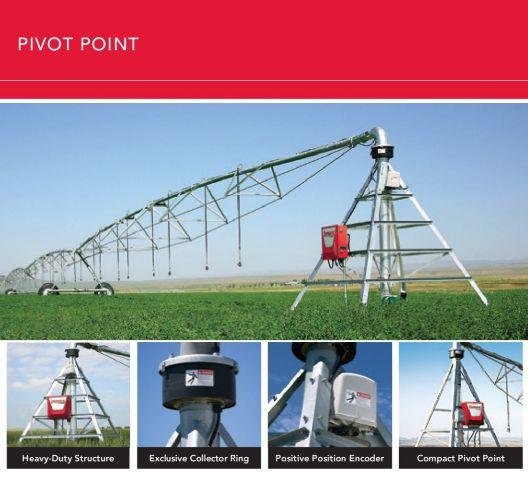

- Collector Ring
- External
- Control Panel Vision

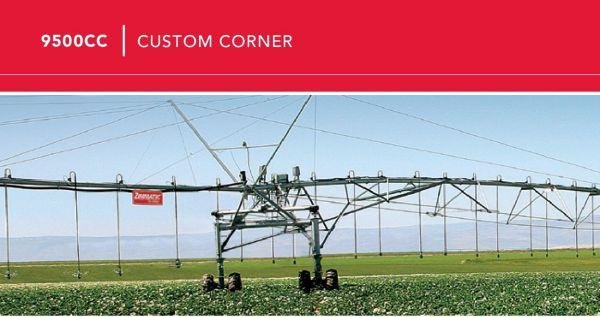

- Corner Guidance
- Optional
- Field Size Max ha
- 65
- Field Size Min ha
- 16
- Formed Outlets
- 1
- Gearbox Type
- AT Gearbox
- Machine Length Max m
- None
- Mobility Towable
- Overhang Length Max m
- 26,82
- Overhang Length Min m
- 3,35
- Pipe Length Full m
- 13,41
- Pipe Length Half m
- 6,71

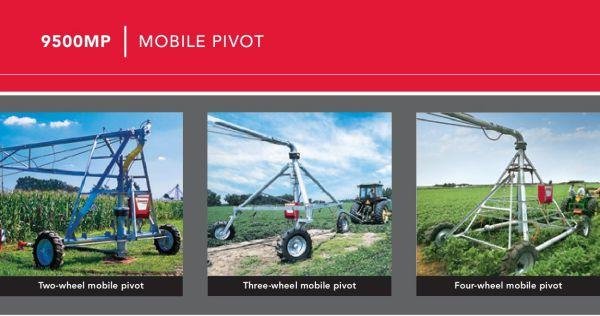

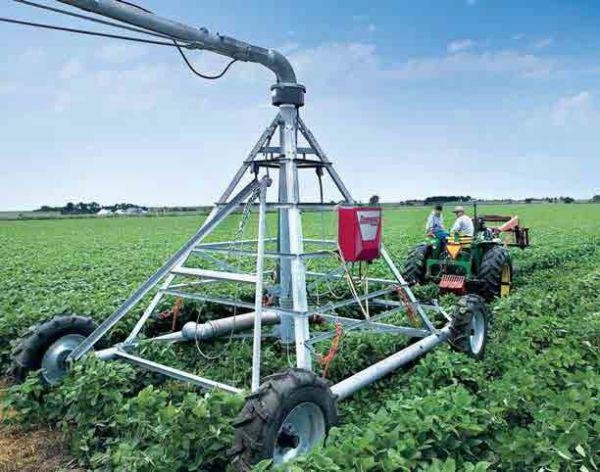

- Pivot Point Type Mobile
- Power Supply Commercial Power, On-board diesel engine and generator set, On-board diesel engine and generator set or commercial power, Trailer-mounted stationary diesel engine generator set
- Span Connection Aluminium Coupler and Boot
- Span Lengths Max m
- 61,26
- Span Lengths Min m
- 34,44
- Sprinkler Options Fixed-spray sprinklers, LEPA sprinklers, Rotating-spray sprinklers
- Tower Height High Clearance, Medium Clearance, Standard Clearance
- Towing Details Can be towed any direction and configured for reverse tow / To be towedin a straight line from the four-wheel cart only.
- Tyre Options
- 11.2 x 22.5 / 11.2 x 24 / 11.2 x 24.5 / 11.2 x 38 / 14.9 x 24 / 16.9 x 24, Trax
- Uni Knuckle Joint
- 1
- Wheel Assembly Airless
- Optional (12x52),Standard
×
