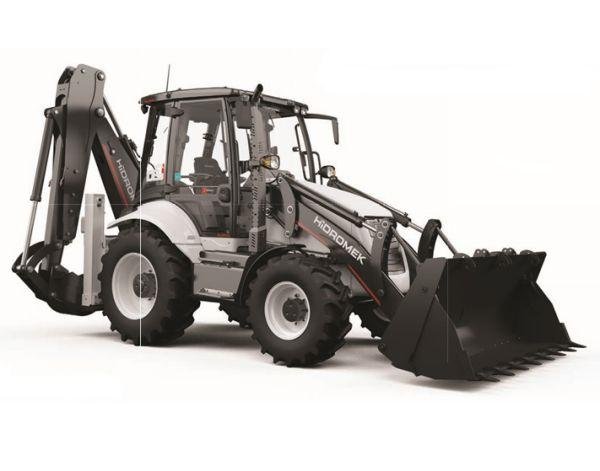

Hidromek - HMK 102B Alpha
Hidromek - HMK 102B Alpha
- Range
- 100B Alpha
- Division
- Backhoe Loaders
- Manufacturer
- Hidromek
- Backhoe Digging Depth mm
- 4409
- Backhoe Reach From Centre Of Swing Pivot mm
- 5695
- Backhoe Swing Arc deg
- 193.5
- Bucket Dump Angle Max deg
- 47,3

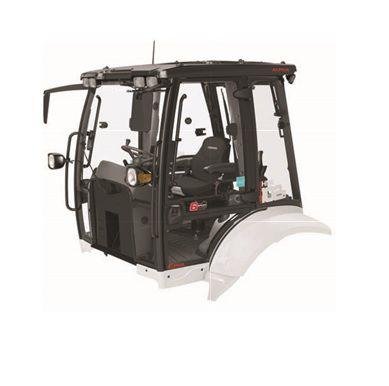

- Cab Type
- CAB/ROPS/FOPS
- Digging Depth mm
- 180
- Driven Wheels
- 4wd
- Engine Aspiration
- Turbocharged
- Engine Displacement cm3
- 4400
- Engine Manufacturer
- Perkins
- Engine Model
- 1104D-44TA
- Engine Power kW
- 74,5
- Engine Speed Max Power rpm
- 2200
- Fuel Tank Capacity l
- 140
- Ground Clearance mm
- 401,5
- Height mm
- 2950
- Loader Bucket Capacity cm3
- 1,1000000000000001
- Loader Bucket Width mm
- 2440
- Loader Lift Capacity kg
- 3170
- Loader Max Height Hingepin mm
- 3460
- No Of Cylinders
- 4
- Oil Pump Flow Backhoe lpm
- 90+57
- Oil Pump Flow Loader lpm
- 90+57
- Rollback Angle deg
- 38
- Torque Max N
- 410
- Torque Max Engine Speed rpm
- 1400
- Transmission Speeds
- 6x3
- Transmission Type
- Autoshift
- Tyre Size Front
- 16/70-20 12 PR
- Tyre Size Rear
- 16.9 x 28 12 PR
- Weight kg
- 9100
- Width mm
- 2292
×
